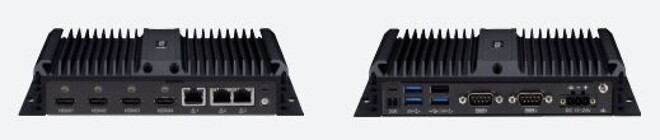

Compact Industrial Box-PC System NISE 70-T01

| Medlemsnyhed | Indrykket af Data Respons Solutions

Data Respons have released the fanless compact system, for industrial applications with low power consumption and abundant I/O interfaces and with limited installation space.

Powered by the latest Generation of Intel® Celeron® 6305E processor (formerly codenamed "Tiger Lake-UP3"), NISE 70.

The NISE 70-T01 supports a wide range of operating temperature from -5°C to 55°C and wide range DC power input from 12V to 24V. The NISE 70 is also the first system in the slim NISE 50 series to support 4 independent displays and DDR4 3200MHz memory up to 32GB. The NISE 70 have strong connectivity – Ethernet-based LAN port and traditional Serial port, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 1 x mini-PCIe socket and 1 x M.2 socket which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE, 5G modules as well as storage module. NISE 70 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.

Main Features

  • Onboard Intel® Celeron® 6305E Processor
  • 4 x HDMI
  • 3 x USB 3.0, 1 x USB 2.0
  • 1 x RS232/422/485, 1 x RS232
  • 3 x GbE LAN ports; support WoL, teaming and PXE
  • Support TPM2.0 chip (by project)
  • 1 x M.2 socket for storage/4G LTE/5G modules
  • 1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
  • Support operating temperature from -5°C to +55°C
  • Support +12V to 24VDC input; support ATX power mode

See more at Data Respons Solutions website: Data Respons Solutions

Or please feel free to contact Data Respons's sales department at:

Mail: sales@datarepons.dk
Phone: +45 8832 7500
